In modern construction, mechanical rebar splicing is increasingly used in applications where conventional lap splicing may create reinforcement congestion or require large lap lengths. A properly configured CDRG-45 Rebar Threading Machine provides a controlled method for preparing threaded reinforcement bars.

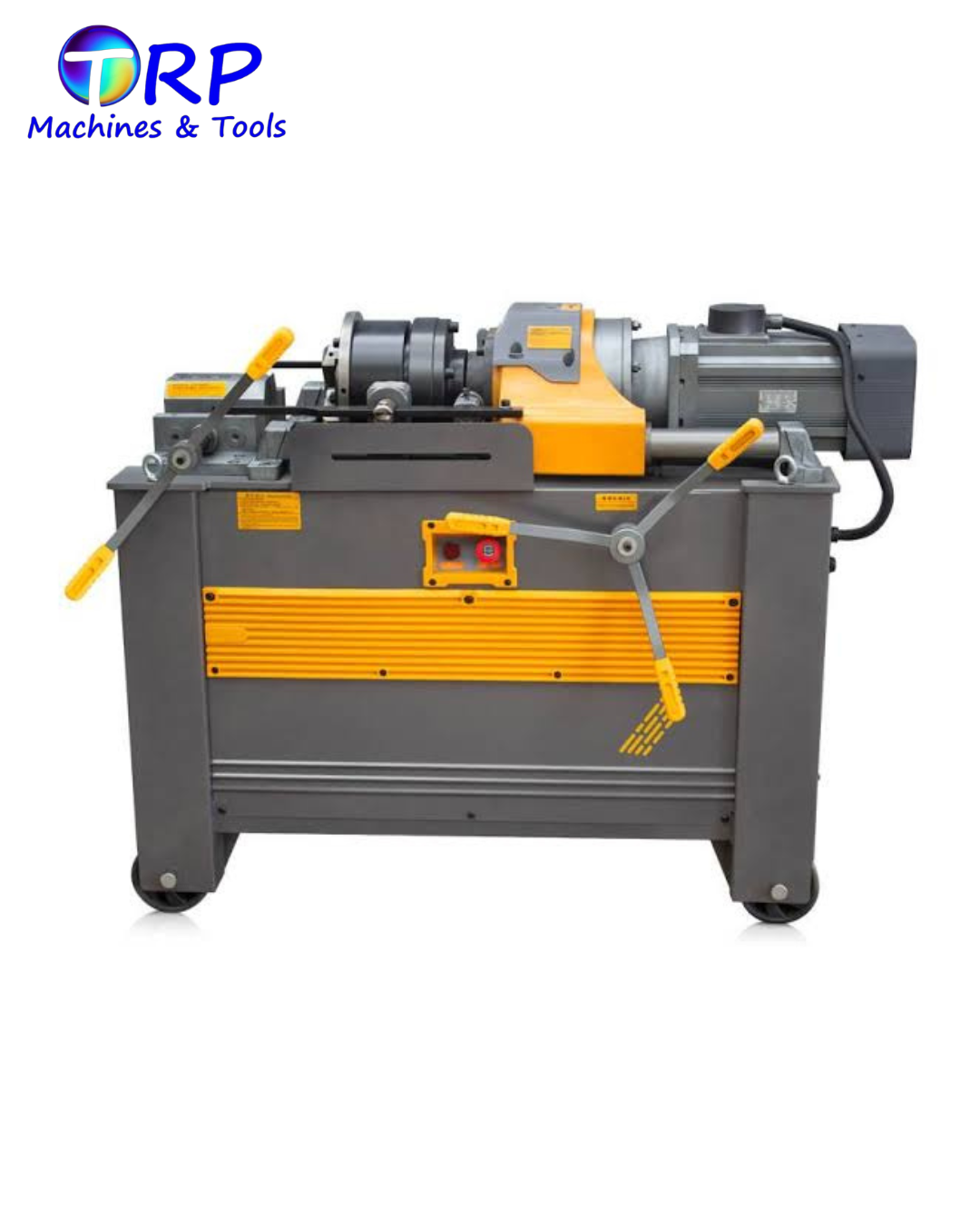

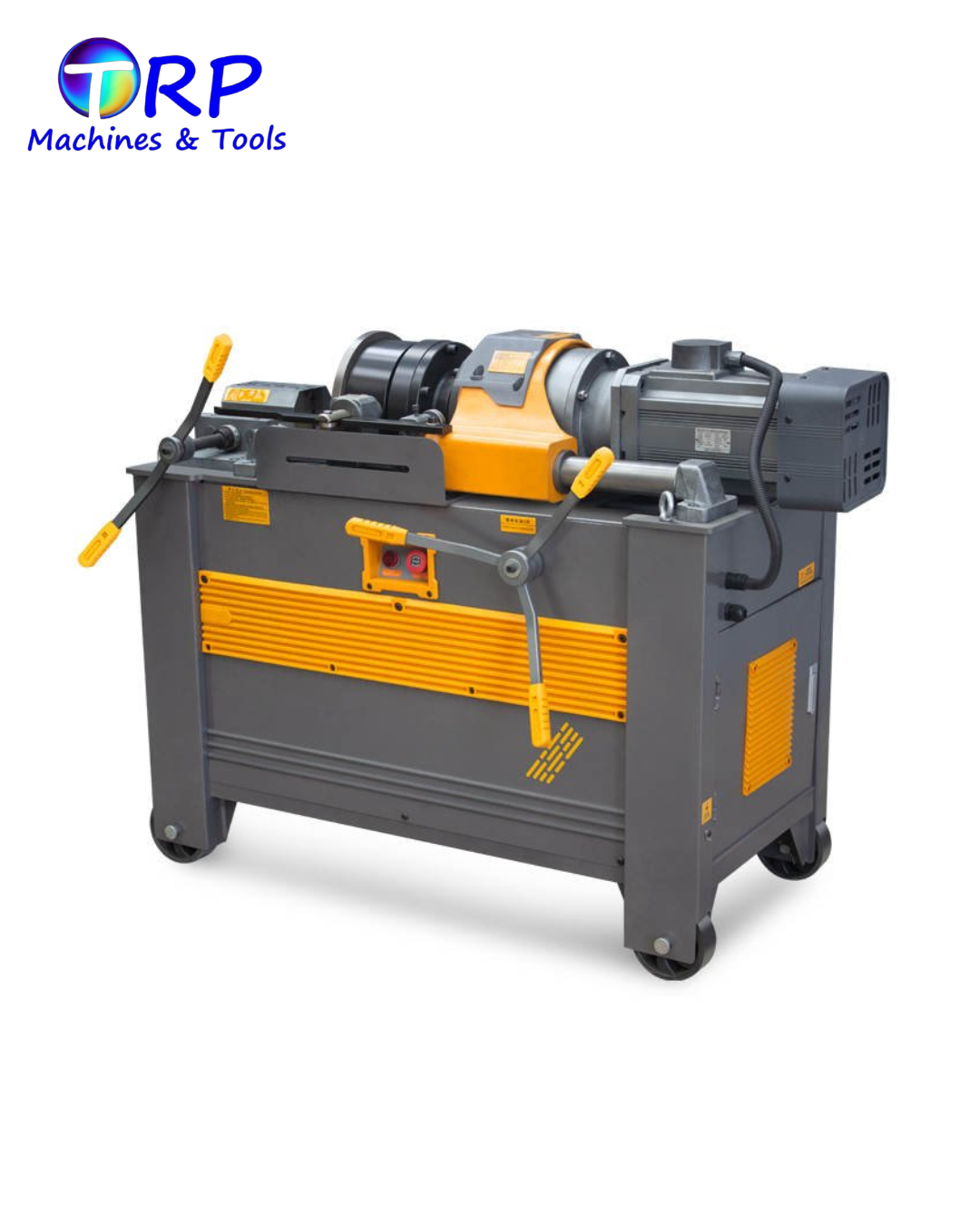

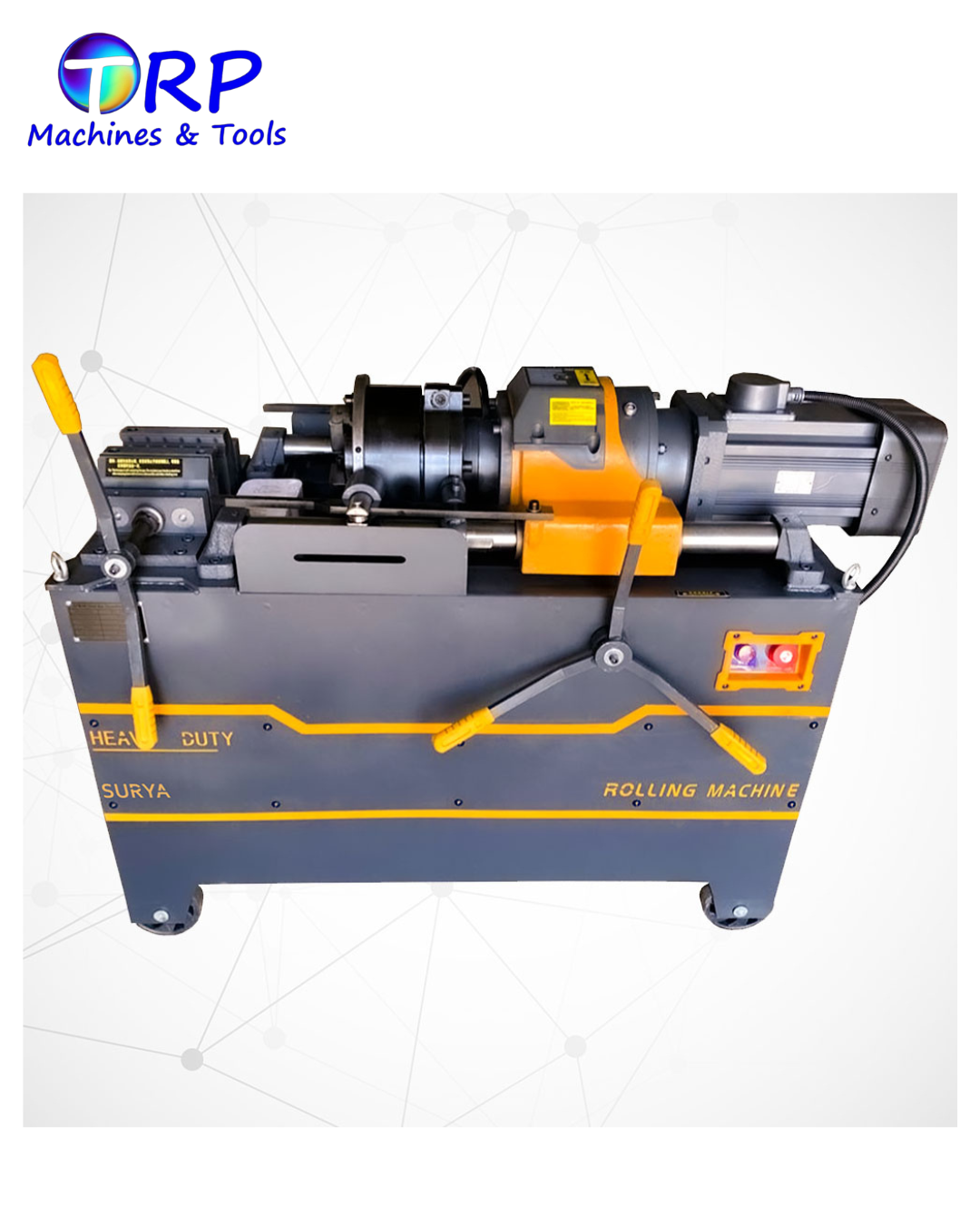

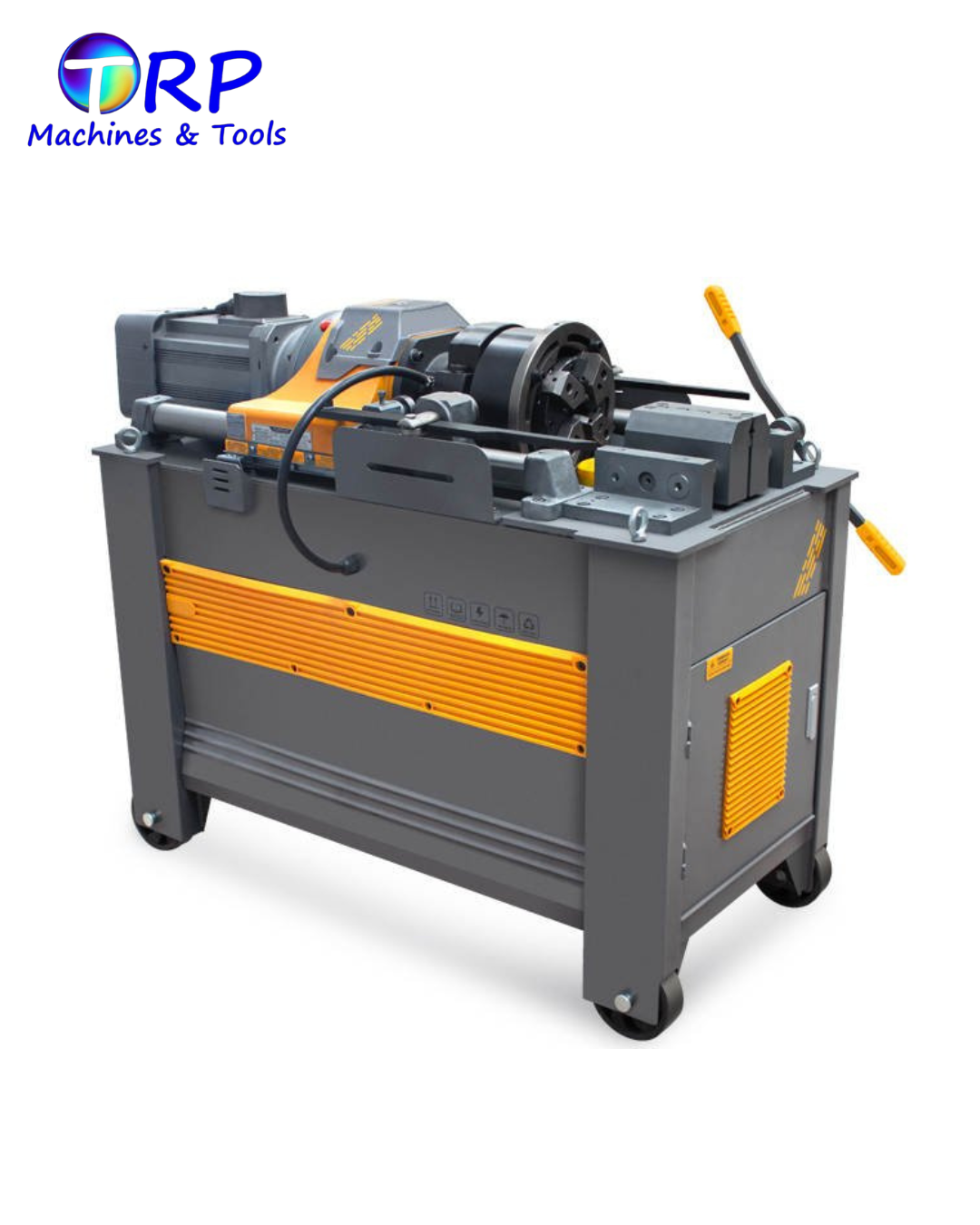

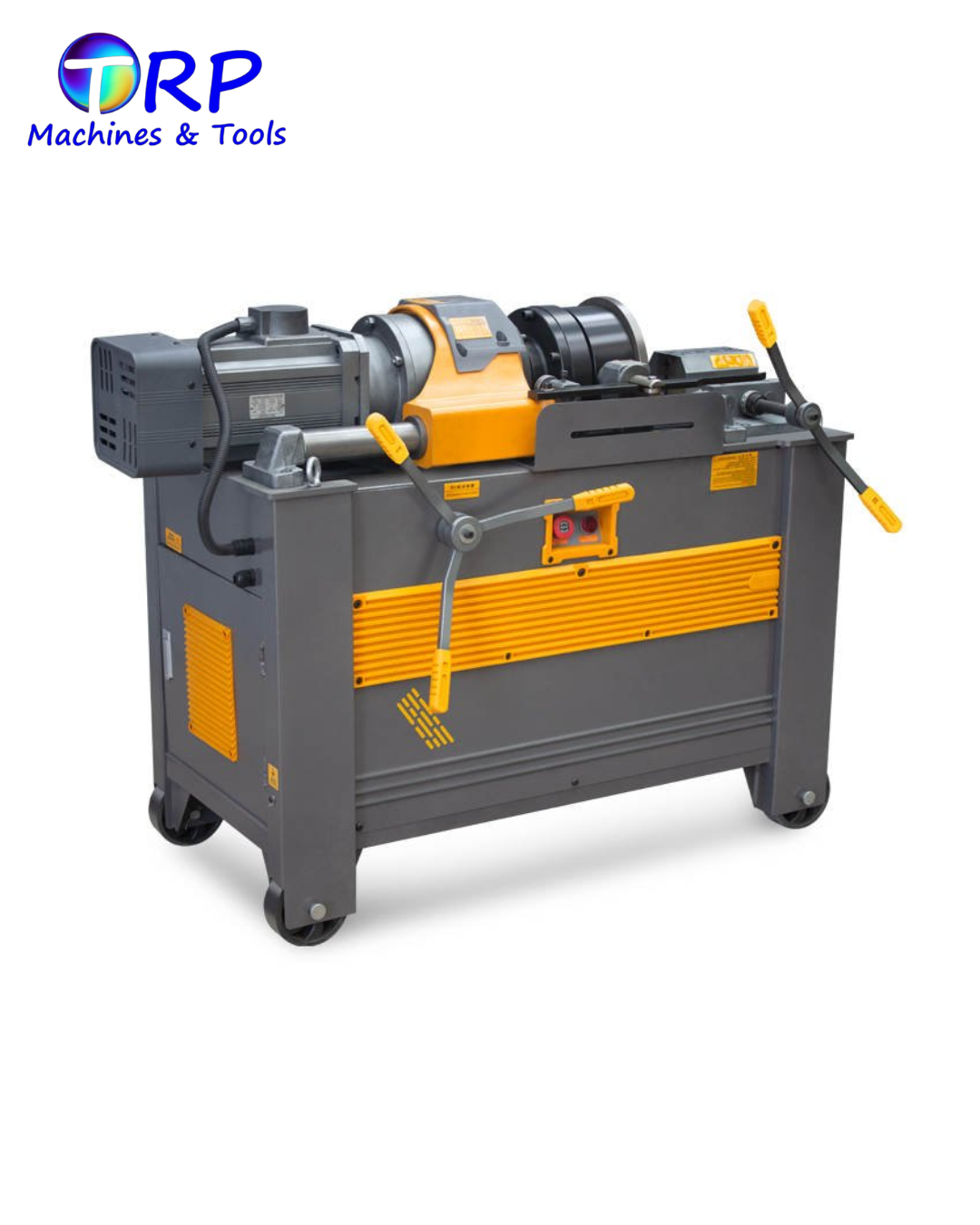

The CDRG-45 Rebar Threading Machine is a specialized TMT Bar Thread Rolling Machine designed to process the ends of reinforcement bars.

The machine forms a parallel thread on the prepared bar end so that it can be connected with a compatible threaded rebar coupler.

It is commonly used in:

• High-rise construction
• Residential projects
• Commercial buildings
• Bridges and flyovers
• Metro projects
• Infrastructure projects
• Industrial construction
• Rebar fabrication yards
• Reinforcement processing workshops

Why manually prepare reinforcement bar threads when a dedicated machine can provide controlled and repeatable processing?

The CDRG-45 helps with:

• Consistent thread formation
• Faster TMT bar processing
• Repeatable bar-end preparation
• Mechanical rebar splicing
• Reduced manual processing
• Better production control
• Compatible rebar coupler connections
• Organized rebar fabrication

The basic process involves preparing the reinforcement bar end and forming the required thread using threading rollers.

1. 01: Cut the TMT BarThe reinforcement bar is first cut to the required length using a suitable rebar cutting machine.
2. 02: Position the BarThe TMT bar is correctly positioned and secured inside the CDRG-45.
3. 03: Prepare the Bar EndThe bar end is processed according to the machine's threading procedure.
4. 04: Roll the ThreadThe machine uses suitable rollers/dies to form the required parallel thread.
5. 05: Inspect the ThreadThe finished thread should be checked for:
6. 06: Install the Rebar CouplerThe prepared threaded bar end is connected with a compatible mechanical rebar coupler.

• Thread profile
• Thread pitch
• Thread length
• Diameter
• Surface condition
• Coupler compatibility

Thread rolling is a cold-forming process used to produce a thread profile through controlled deformation.

In rebar applications, thread rolling is used to create a threaded bar end suitable for mechanical connection.

This is why the CDRG-45 is commonly described using both terms:

• Rebar Threading Machine
• Rebar Thread Rolling Machine

Rebar threading refers to the overall process of preparing a threaded reinforcement bar end.

Thread rolling describes the method used to form the thread.

Therefore, the terms may appear together in product searches:

Common CDRG-45 configurations are designed for 16 mm to 40 mm reinforcement bars.

The actual working capacity should always be confirmed from the specific machine configuration and supplied technical specification before purchase.

Published CDRG-45 configurations commonly use approximately 2.5–3 mm thread pitch.

The correct pitch depends on the specified coupler and connection system.

Commonly listed CDRG-45 configurations provide a maximum working/threading length of approximately 80 mm.

The required threading length should be confirmed according to the selected coupler and project requirements.

Typical specifications can include:

• Model: CDRG-45
• Machine Type: Rebar Thread Rolling Machine
• Application: TMT/Reinforcement Bar Threading
• Typical Rebar Capacity: 16–40 mm
• Thread Pitch: Approximately 2.5–3 mm
• Maximum Working Length: Approximately 80 mm
• Operation: Semi-Automatic, configuration dependent
• Power Supply: Electrical
• Motor: Configuration dependent
• Application: Mechanical Rebar Splicing

Exact specifications may vary by machine configuration, so the final technical datasheet should be checked before procurement.

The CDRG-45 is not the coupler itself.

Its role is to prepare the reinforcement bar end.

The basic system is:

The threading machine and coupler must be compatible.

• Mechanical connection
• Threaded reinforcement bars are joined using a compatible coupler

• Reinforcement bars overlap
• Connection is achieved through the designed lap arrangement

• Threaded bar end
• Machine-controlled preparation

• Usually does not require threaded bar-end preparation

• Lap length is not required for the mechanical connection itself

• Lap length is required according to structural design

• Can help reduce congestion in heavily reinforced areas

• Overlapping reinforcement can increase congestion

• Requires a rebar threading machine and compatible coupler

• Generally does not require threading equipment

• High control over repetitive bar-end preparation

• Moderate production control

• Mechanical rebar splicing systems

• Conventional reinforcement detailing

The CDRG-45 can be used for reinforcement processing in:

• High-rise buildings
• Residential towers
• Commercial construction
• Industrial projects
• Bridges
• Flyovers
• Metro rail projects
• Railway construction
• Highway projects
• Tunnels
• Power plants
• Infrastructure projects
• Precast construction
• Rebar fabrication yards
• Steel reinforcement workshops

Machine-controlled processing can provide repeatable thread formation.

Suitable for repetitive preparation of threaded reinforcement bars.

Reduces dependence on manual bar-end threading operations.

Prepared threaded ends can be used with compatible threaded rebar couplers.

Rebar threading can be incorporated into an organized reinforcement fabrication workflow.

Mechanical splicing can reduce overlapping reinforcement where approved by the structural design.

A typical reinforcement processing workflow can be:

Rebar Cutting → Bar-End Preparation → CDRG-45 Thread Rolling → Thread Inspection → Coupler Installation → Reinforcement Assembly → Site Installation

This approach is useful for projects requiring a large number of mechanical rebar connections.

Before purchasing a CDRG-45, check:

• Rebar diameter range
• Required thread pitch
• Required thread length
• Motor power
• Electrical supply
• Threading rollers
• Spare tooling
• Production capacity
• Machine dimensions
• Machine weight
• Maintenance requirements
• Coupler compatibility
• Technical support
• Warranty and service support

Regular maintenance is important for maintaining threading quality.

• Clean the machine regularly.
• Remove steel particles from the working area.
• Inspect threading rollers.
• Check gears and bearings.
• Maintain lubrication.
• Check electrical connections.
• Inspect the bar clamping system.
• Replace worn tooling.
• Check machine alignment.
• Follow the recommended maintenance schedule.

Incorrect thread preparation can create problems during coupler installation.

Possible issues include:

• Poor coupler engagement
• Thread mismatch
• Difficult assembly
• Incorrect thread length
• Connection rejection
• Production delays
• Increased rework

For this reason, thread inspection and coupler compatibility are important.

• Contractors
• Builders
• EPC companies
• Infrastructure companies
• Rebar processors
• Reinforcement fabricators
• Civil engineering companies
• Construction procurement teams

The CDRG-45 can be integrated with other reinforcement processing equipment such as rebar cutting machines, rebar cold forging machines, rebar couplers and other TMT bar processing equipment.

The CDRG-45 Rebar Threading Machine is designed for controlled preparation of threaded reinforcement bar ends used in mechanical rebar splicing.

With commonly available configurations covering 16–40 mm TMT bars, the machine can support construction companies and rebar processors handling repetitive threaded-bar production.

For a successful mechanical rebar connection, the machine, threading parameters, reinforcement bar, and coupler should be selected as a compatible system and installed according to the approved project requirements.
