MBT Coupler: Complete Guide
Modern construction projects require strong, reliable, and efficient reinforcement connections without compromising structural integrity. Traditional lap splicing increases steel consumption, creates reinforcement congestion, and can be difficult to install in heavily reinforced concrete structures.

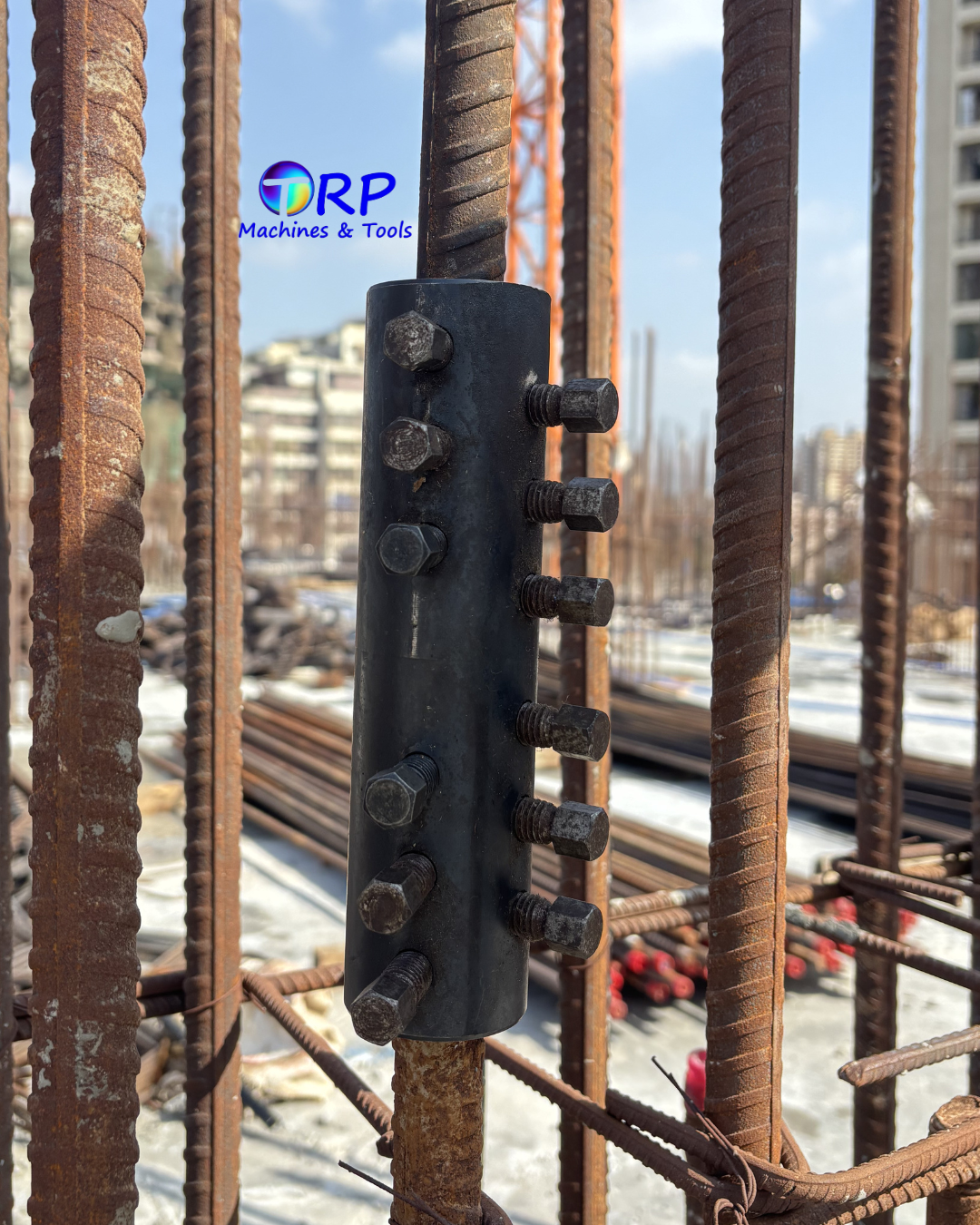

An MBT Coupler (Mechanical Bolted Terminating Coupler) is an advanced mechanical reinforcement splicing system that connects two reinforcement bars without threading, welding, or bar end preparation. The connection is achieved using specially designed high-strength bolts that grip the reinforcement bars securely, providing a reliable mechanical splice.
Also known as a Mechanical Bolt Coupler, Mechanical Rebar Coupler, Threadless Rebar Coupler, Mechanical Splice Coupler, Bolt Lock Rebar Coupler, Threadless TMT Bar Coupler, Mechanical Reinforcement Coupler, or Mechanical Bar Connector, MBT Couplers are widely used in infrastructure projects, bridges, metro rail, tunnels, dams, precast construction, industrial buildings, and seismic structures.
TRP Machines & Tools, Mumbai, Maharashtra, India, manufactures high-quality MBT Couplers engineered for superior load transfer, easy installation, and long-term structural performance.
Quick Answer
An MBT Coupler is a threadless mechanical rebar coupler used to connect two reinforcement bars using high-strength locking bolts. It eliminates the need for threading or welding and provides a fast, strong, and reliable reinforcement connection, especially in repair works, retrofit projects, and locations where bar rotation is not possible.
Table of Contents
What is an MBT Coupler?
An MBT Coupler is a heavy-duty mechanical splice designed to connect reinforcement bars without cutting threads on the bar ends. The coupler body contains high-strength bolts that, when tightened, firmly grip both reinforcing bars and create a secure mechanical connection.
Unlike threaded couplers, MBT Couplers do not require specialized threading machines or bar end preparation, making them ideal for repair work, retrofit projects, and situations where existing reinforcement cannot be rotated.
Why is an MBT Coupler Required?
In many construction projects, threading or rotating reinforcement bars is not practical due to space constraints, existing reinforcement, or repair conditions.
MBT Couplers provide an efficient solution by:
How Does an MBT Coupler Work?
The MBT Coupler works through mechanical locking.
Step 1 – Bar Preparation
Clean the reinforcement bar ends to remove dirt, rust, oil, or loose particles.
Step 2 – Insert First Bar
Insert the first reinforcement bar into one side of the coupler until it reaches the center stop.
Step 3 – Insert Second Bar
Insert the second reinforcement bar from the opposite side.
Step 4 – Tighten Locking Bolts
Using a calibrated torque wrench, tighten the high-strength bolts in the recommended sequence.
Step 5 – Mechanical Grip
The bolts apply controlled pressure to the reinforcement bars, creating a secure mechanical connection.
Step 6 – Final Inspection
Verify bolt torque and bar positioning before concrete placement.
Why Choose MBT Couplers Over Traditional Lap Splicing?
Traditional lap splicing increases steel usage and reinforcement congestion.
MBT Couplers provide:

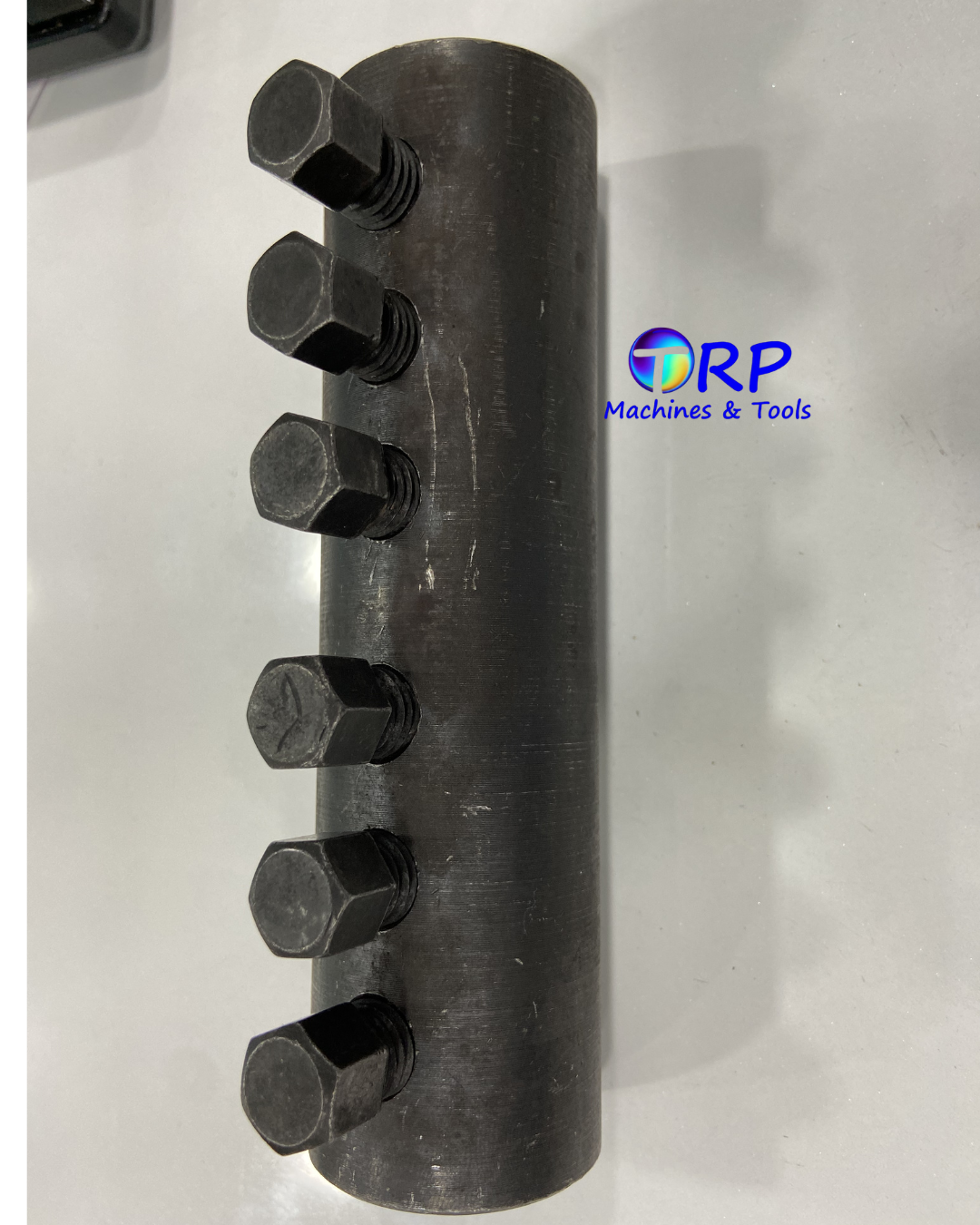

Components of an MBT Coupler
Coupler Body
Manufactured from high-strength steel to provide reliable mechanical performance.
High-Strength Locking Bolts
Specially designed bolts securely grip the reinforcement bars and transfer loads.
Centre Stop
Ensures correct positioning of both reinforcement bars within the coupler.
Types of MBT Couplers
Standard MBT Coupler
Used for joining reinforcement bars of the same diameter.
Reducer MBT Coupler
Connects reinforcement bars of different diameters.
Repair MBT Coupler
Designed for retrofit projects and replacement of damaged reinforcement.
Transition MBT Coupler
Suitable where reinforcement sizes change within the structure.
Why is an MBT Coupler Better Than Conventional Joining Methods?
Compared to lap splicing or welding, MBT Couplers offer:
Key Features
Benefits of Using MBT Couplers
Structural Benefits
Construction Benefits
Financial Benefits
Technical Specifications
Installation Process
Step 1
Clean both reinforcement bars.
Step 2
Insert the first bar into the coupler.
Step 3
Insert the second bar until both bars touch the centre stop.
Step 4
Tighten bolts gradually in the specified sequence using a torque wrench.
Step 5
Verify the specified torque.
Step 6
Inspect the completed connection before concrete placement.
Applications
MBT Couplers are widely used in:
Industries Served
MBT Coupler vs Threaded Rebar Coupler
MBT Coupler
Threaded Rebar Coupler
Maintenance Tips
Buying Guide
Before purchasing an MBT Coupler, consider:
Why Choose TRP Machines & Tools?
TRP Machines & Tools manufactures premium-quality MBT Couplers designed to deliver safe, reliable, and efficient reinforcement bar connections for modern construction projects.
Why Customers Choose TRP Machines & Tools
Frequently Asked Questions
What is an MBT Coupler?
An MBT Coupler is a threadless mechanical reinforcement coupler that connects reinforcement bars using high-strength locking bolts without requiring threading or welding.
Why are MBT Couplers used?
They provide fast, reliable reinforcement connections where threading, welding, or bar rotation is difficult or impossible.
Can MBT Couplers be used for repair projects?
Yes. MBT Couplers are one of the best solutions for repair, retrofit, extension, and strengthening works because they do not require threaded bar ends.
Do MBT Couplers require a threading machine?
No. MBT Couplers eliminate the need for threading machines, making installation faster and more convenient.
Where are MBT Couplers commonly used?
They are widely used in bridges, tunnels, metro projects, industrial buildings, precast construction, marine structures, dams, water treatment plants, and high-rise buildings.
Conclusion
An MBT Coupler is a practical and reliable mechanical splicing solution for connecting reinforcement bars without threading or welding. It simplifies installation, improves structural continuity, reduces construction time, and is particularly effective for repair, retrofit, and congested reinforcement applications.
Whether you are constructing bridges, high-rise buildings, metro projects, industrial facilities, or carrying out structural repairs, TRP Machines & Tools supplies precision-engineered MBT Couplers that deliver dependable performance, long service life, and superior construction efficiency.
